MI DISP API

REVISION HISTORY¶

Revision No.	Description	Date
2.03	Initial release	04/12/2018
2.04	Add API: MI_DISP_GetLcdParam, MI_DISP_SetLcdParam,MI_DISP_DeviceGetColorTempeture, MI_DISP_DeviceSetColorTempeture, MI_DISP_DeviceSetGammaParam, MI_DISP_SetVideoLayerRotateMode Data structure modification: MI_DISP_InputPortAttr_t adds parameter MI_U16 u16SrcWidth, MI_U16 u16SrcHeight;	06/06/2019
2.05	Add API: MI_DISP_DeviceAttach, MI_DISP_DeviceDetach	06/19/2019
2.06	Modify MI_DISP_ClearInputPortBuffer parameter Add API: MI_DISP_InitDev, MI_DISP_DeInitDev	05/13/2020
2.07	Add Interface Type	06/18/2020
2.08	Modify chip name Table 2‑1 deletes MI_DISP_RefreshInputPort Add API：MI_DISP_SetZoomInWindow	08/04/2020
2.09	Add interface type: E_MI_DISP_INTF_TTL_SPI_IF	09/03/2020
2.10	Add interface type: E_MI_DISP_INTF_SRGB	10/26/2020
2.11	Add data type: MI_DISP_DevAttachAttr_t	12/24/2020
2.12	Add API: MI_DISP_SetWBCSource, MI_DISP_GetWBCSource, MI_DISP_SetWBCAttr, MI_DISP_GetWBCAttr , MI_DISP_EnableWBC, MI_DISP_DisableWBC	01/05/2021
2.13	Add interface type: E_MI_DISP_INTF_MCU, E_MI_DISP_INTF_MCU_NOFLM	01/22/2021
2.14	Modify struct MI_DISP_SyncInfo_t Add parameter: MI_U16 u16VStart, MI_U16 u16HStart	04/16/2021
2.15	Add Timing Type: E_MI_DISP_OUTPUT_1920x1080_5994, E_MI_DISP_OUTPUT_1920x1080_2997, E_MI_DISP_OUTPUT_1280x720_5994	04/22/2021
2.16	Add Timing Type: E_MI_DISP_OUTPUT_1280x720_2997	05/17/2021
2.17	Add Muffin相关内容	05/25/2021
2.18	Add Timing Type: E_MI_DISP_OUTPUT_2560x1440_50, E_MI_DISP_OUTPUT_2560x1440_60, E_MI_DISP_OUTPUT_3840x2160_25	06/10/2021
2.19	Add Timing Type，Modify Ikayaki框图: E_MI_DISP_OUTPUT_3840x2160_2997	08/05/2021
	Added PROCFS introduction	08/25/2021
2.20	Add Mochi related content Error code optimization	09/03/2021
2.21	Add Support BT601 output Add csc supported by CVBS interface	10/12/2021
2.22	Add Timing Type: E_MI_DISP_OUTPUT_720P24, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_1920x1080_2398, E_MI_DISP_OUTPUt_3840x2160_24, E_MI_DISP_OUTPUT_848x480_60, E_MI_DISP_OUTPUT_1280x768_60, E_MI_DISP_OUTPUT_1280x960_60, E_MI_DISP_OUTPUT_1360x768_60, E_MI_DISP_OUTPUT_1400x1050_60, E_MI_DISP_OUTPUT_1600x900_60, E_MI_DISP_OUTPUT_1920x1440_60	11/29/2021
2.23	Add interface type: E_MI_DISP_INTF_BT1120_DDR	12/08/2021
2.24	Add interface: MI_DISP_SetVideoLayerAttrBatchBegin, MI_DISP_SetVideoLayerAttrBatchEnd Modify Note for the following interfaces: MI_DISP_DisableVideoLayer, MI_DISP_UnBindVideoLayer	12/20/2021
2.25	Modify 1.2.6 Flow chart Modify 3.23 Note	2/16/2022
2.26	Add some info of Maruko	3/7/2022
2.27	Add a flow chart about device init or deinit. Add notes for each chips Add a timing table supported by each interface Modify the binding diagram of device to layer Modify procfs information	06/10/2022

1. SUMMARY¶

1.1. Module Description¶

The DISP is a video display unit. Its main function is to splice the image output from modules which bind with it, and to perform color space conversion on the image. After that, the image is output to the display or LCD through HDMI/VGA/MIPI/TTL or other interfaces.

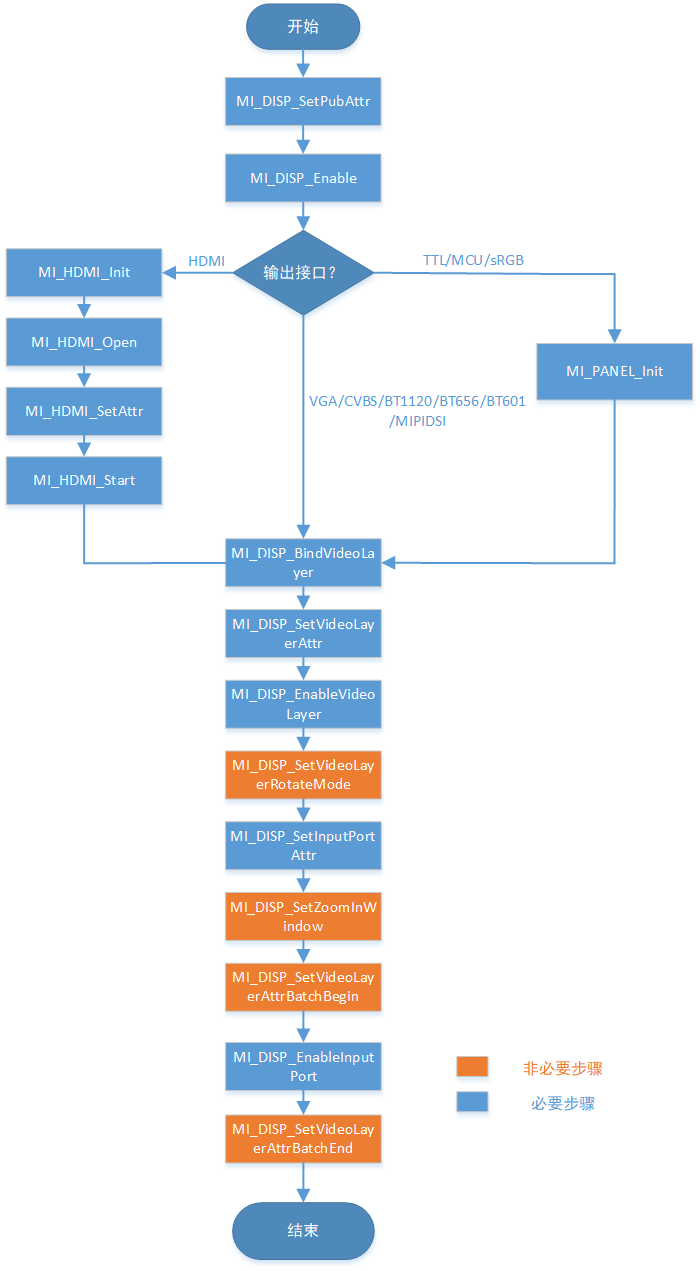

1.2. Flow Chart¶

1.2.1. Taiyaki/Takoyaki¶

Note:

HDMI and VGA interface can be used at the same time to output an image, whereas MIPI/TTL interface can only be used one at a time to output an image.
The output screen of MOP1 will be superimposed on MOP0 to realize the function of PIP, that is, the display priority of MOP1 is higher than that of MOP0.
The display positions of the 16 Input Ports on MOP0 cannot overlap each other.
The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.
The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

1.2.2. Pretzel/Pudding¶

Note:

Pretzel/Pudding does not support to adjust brightness, saturation and chroma.
The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.
The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

1.2.3. Tiramisu¶

Note:

For each device, HDMI and VGA interfaces can be used to output an image at the same time, whereas interfaces like CVBS, MIPI, TTL, BT1120, BT656, BT601, sRGB, MCU can only be output an image separately.
The output screen of MOP1 will be superimposed on MOP0 to realize the function of PIP, that is, the display priority of MOP1 is higher than that of MOP0.
The display positions of the 16 Input Ports on MOP0 cannot overlap each other.
MOP2 and MOP3 are used in the same way as MOP0 and MOP1.
The output of DISP0 and DISP1 can be written back to the memory by WBC.
The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.
The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

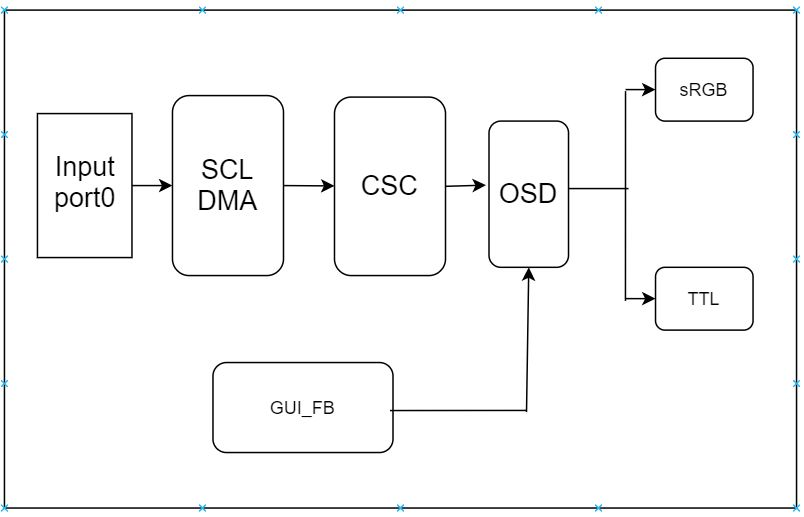

1.2.4. Ikayaki¶

Note:

TTL/sRGB interface can only be used one to output an image at a time.
The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.
The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

1.2.5. Muffin¶

Note:

For each device, HDMI and VGA interfaces can be used to output an image at the same time, whereas interfaces like CVBS, MIPI, TTL, BT1120, BT656, BT601, sRGB, MCU can only be output an image separately.
The output screen of MOP1 will be superimposed on MOP0 to realize the function of PIP, that is, the display priority of MOP1 is higher than that of MOP0.
The display positions of the 32 Input Ports on MOP0 cannot overlap each other.
MOP⅔ and MOP⅘ are used in the same way as MOP0 and MOP1.
The output of DISP0 and DISP1 can be written back to the memory by WBC.
The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.
The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

1.2.6. Mochi¶

Note:

For each device, HDMI and VGA interfaces can be used to output an image at the same time, whereas interfaces like CVBS can only be output an image separately.
The output screen of MOP1 will be superimposed on MOP0 to realize the function of PIP, that is, the display priority of MOP1 is higher than that of MOP0.
The display positions of the 32 Input Ports on MOP0 cannot overlap each other.
MOP2 and MOP3 are used in the same way as MOP0 and MOP1.
The output of DISP0 and DISP1 can be written back to the memory by WBC.
The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.
The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

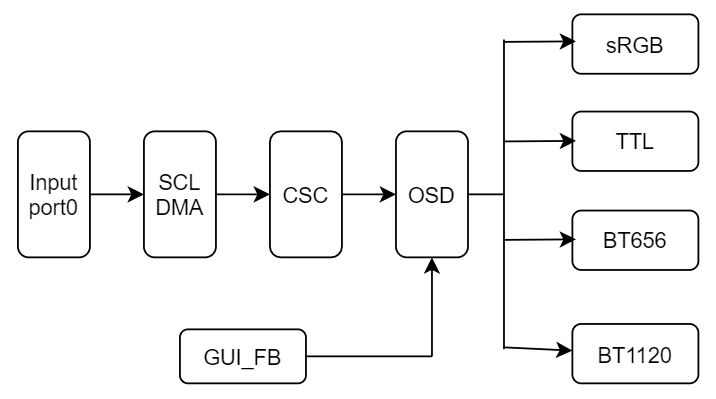

1.2.7. Maruko¶

Note:

sRGB, TTL, B656 and BT1120 cannot be output at the same time, only one of them can be output at a time.
The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.
The input image data format of the DISP module only supports: E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420, E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420_NV21, E_MI_SYS_PIXEL_FRAME_YUV420_PLANAR, E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_422, E_MI_SYS_PIXEL_FRAME_YUV422_PLANAR, E_MI_SYS_PIXEL_FRAME_YUV422_YUYV, E_MI_SYS_PIXEL_FRAME_YUV422_UYVY, E_MI_SYS_PIXEL_FRAME_ARGB8888, E_MI_SYS_PIXEL_FRAME_ABGR8888, E_MI_SYS_PIXEL_FRAME_BGRA8888.

The differences among different chip series are shown in the table below:

Output interface Chip series	HDMI	VGA	MIPI DSI	TTL	CVBS	sRGB
Pretzel	not support	not support	not support	support	not support	not support
Macaron	not support	not support	not support	not support	not support	not support
Taiyaki	support	support	not support	not support	not support	not support
Takoyaki	not support	not support	support	support	not support	not support
Pudding	not support	not support	not support	support	not support	not support
Ispahan	not support	not support	not support	not support	not support	not support
MSR930	support	support	support	support	not support	not support
Tiramisu	support	support	support	support	support	support
Ikayaki	not support	not support	not support	support	not support	support
Muffin	support	support	support	support	support	support
Mochi	support	support	not support	not support	support	not support
Maruko	not support	not support	not support	support	not support	support

1.3. Keyword¶

DEV

Device, which corresponded to DISP0/1 in Flow Chart.
MOP

A hardware unit that reads image data in memory and performs puzzle processing.
LAYER

Video layer. MOP hardware abstraction layer.
CSC

Color space conversion unit
OSD Mixer

UI overlay
GUI FB/HW Cursor

GOP output
PIP

Picture In Picture
WBC

Write back channel, it can capture video layer or device-level video data, used for multi-dev homologous display.

2. API LIST¶

The MI DISP module provides the following APIs:

API Name	Function
MI_DISP_Enable	Enable video output device
MI_DISP_Disable	Disable video output device
MI_DISP_SetPubAttr	Set public attribute of video output device
MI_DISP_GetPubAttr	Get public attribute of video output device
MI_DISP_DeviceAttach	Enable video output devices from the same source
MI_DISP_DeviceDetach	Disable video output devices from the same source
MI_DISP_EnableVideoLayer	Enable video layer
MI_DISP_DisableVideoLayer	Disable video layer
MI_DISP_SetVideoLayerAttr	Set video layer attribute
MI_DISP_GetVideoLayerAttr	Get video layer attribute
MI_DISP_BindVideoLayer	Bind video layer to specified device
MI_DISP_UnBindVideoLayer	Unbind video layer from specified device
MI_DISP_SetPlayToleration	Set playback toleration
MI_DISP_GetPlayToleration	Get playback toleration
MI_DISP_GetScreenFrame	Get screen output frame data
MI_DISP_ReleaseScreenFrame	Release screen output frame data
MI_DISP_SetVideoLayerAttrBatchBegin	Set the input port on the video layer related operations start
MI_DISP_SetVideoLayerAttrBatchEnd	Set the input port on the video layer related operations end
MI_DISP_EnableInputPort	Enable specified video input port
MI_DISP_DisableInputPort	Disable specified video input port
MI_DISP_SetInputPortAttr	Set specified video input port attribute
MI_DISP_GetInputPortAttr	Get specified video input port attribute
MI_DISP_SetInputPortDispPos	Set specified video input port display position
MI_DISP_GetInputPortDispPos	Get specified video input port display position
MI_DISP_PauseInputPort	Pause specified video input port
MI_DISP_ResumeInputPort	Resume specified video input port
MI_DISP_StepInputPort	Play specified video input port by single frame
MI_DISP_ShowInputPort	Show specified video input port
MI_DISP_HideInputPort	Hide specified video input port
MI_DISP_SetInputPortSyncMode	Set specified video input port sync mode
MI_DISP_QueryInputPortStat	Query video input port status
MI_DISP_SetZoomInWindow	Crop video input port
MI_DISP_GetVgaParam	Get VGA output device parameter
MI_DISP_SetVgaParam	Set VGA output device parameter
MI_DISP_GetHdmiParam	Get HDMI output device parameter
MI_DISP_SetHdmiParam	Set HDMI output device parameter
MI_DISP_GetLcdParam	Get LCD output device parameter
MI_DISP_SetLcdParam	Set LCD output device parameter
MI_DISP_GetCvbsParam	Get CVBS output device parameter
MI_DISP_SetCvbsParam	Set CVBS output device parameter
MI_DISP_DeviceGetColorTempeture	Get output image color temperature information
MI_DISP_DeviceSetColorTempeture	Set output image color temperature information
MI_DISP_DeviceSetGammaParam	Adjust output image gamma parameter
MI_DISP_SetVideoLayerRotateMode	Set the rotation Angle of the output image
MI_DISP_ClearInputPortBuffer	Clear the content of specified video input port
MI_DISP_InitDev	Initialize disp device
MI_DISP_DeInitDev	De-initialize disp device
MI_DISP_SetWBCSource	Set the write-back source of the write-back device
MI_DISP_GetWBCSource	Get the write-back source of the write-back device
MI_DISP_SetWBCAttr	Set write-back device attributes
MI_DISP_GetWBCAttr	Get write-back device attributes
MI_DISP_EnableWBC	Enable write-back device
MI_DISP_DisableWBC	Disable write-back device

2.1. MI_DISP_Enable¶

Function

Enable video output device

Syntax

MI_S32 MI_DISP_Enable (MI_DISP_DEV DispDev);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Since system will not initialize to enable the device, the device should first be enabled before the video output function can be used.
- Before calling the device enable function, the public attribute of the device must be set beforehand; otherwise, a device not configured error code will be returned.

Example

MI_U32 DispDev = 0;
MI_U32 DispLayer = 0;
MI_U32 DispInport = 0;
MI_DISP_PubAttr_t stPubAttr;
MI_DISP_VideoLayerAttr_t stLayerAttr;
MI_DISP_InputPortAttr_t stInputPortAttr;
MI_DISP_VidWinRect_t stWinRect;
MI_DISP_RotateConfig_t stRotateConfig;

memset(&stPubAttr,0,sizeof(MI_DISP_PubAttr_t));
memset(&stLayerAttr,0,sizeof(MI_DISP_VideoLayerAttr_t));
memset(&stInputPortAttr,0,sizeof(MI_DISP_InputPortAttr_t));
memset(&stWinRect, 0, sizeof(MI_DISP_VidWinRect_t));
memset(&stRotateConfig, 0, sizeof(MI_DISP_RotateConfig_t));

stPubAttr.eIntfSync = E_MI_DISP_OUTPUT_1080P60;
stPubAttr.eIntfType = E_MI_DISP_INTF_HDMI;
MI_DISP_SetPubAttr(DispDev, &stPubAttr);
stPubAttr.eIntfType = E_MI_DISP_INTF_VGA;
MI_DISP_SetPubAttr(DispDev, &stPubAttr); // Non-essential steps
MI_DISP_Enable(DispDev);

//HDMI related init
//Necessary steps. Not listed here

stLayerAttr.stVidLayerSize.u16Width = 1920;
stLayerAttr.stVidLayerSize.u16Height = 1080;
stLayerAttr.stVidLayerDispWin.u16X = 0;
stLayerAttr.stVidLayerDispWin.u16Y = 0;
stLayerAttr.stVidLayerDispWin.u16Width = 1920;
stLayerAttr.stVidLayerDispWin.u16Height = 1080;
stRotateConfig.eRotateMode = E_MI_DISP_ROTATE_NONE;
MI_DISP_BindVideoLayer(DispLayer,DispDev);
MI_DISP_SetVideoLayerAttr(DispLayer, &stLayerAttr);
MI_DISP_EnableVideoLayer(DispLayer);
MI_DISP_SetVideoLayerRotateMode(DispLayer, &stRotateConfig); // Non-essential steps

stInputPortAttr.u16SrcWidth = 1920;
stInputPortAttr.u16SrcHeight = 1080;
stInputPortAttr.stDispWin.u16X = 0;
stInputPortAttr.stDispWin.u16Y = 0;
stInputPortAttr.stDispWin.u16Width = 1920;
stInputPortAttr.stDispWin.u16Height = 1080;
stWinRect.u16X = 0;
stWinRect.u16Y = 0;
stWinRect.u16Width = 1920;
stWinRect.u16Height = 1080;
MI_DISP_SetInputPortAttr(DispLayer, DispInport, &stInputPortAttr);
MI_DISP_SetZoomInWindow(DispLayer, DispInport, &stWinRect); // Non-essential steps
MI_DISP_SetVideoLayerAttrBatchBegin(DispLayer); // Non-essential steps
MI_DISP_EnableInputPort(DispLayer, DispInport);
MI_DISP_SetVideoLayerAttrBatchEnd(DispLayer); // Non-essential steps

//exit flow
MI_DISP_SetVideoLayerAttrBatchBegin(DispLayer); // Non-essential steps
MI_DISP_DisableInputPort(DispLayer, DispInport);
MI_DISP_SetVideoLayerAttrBatchEnd(DispLayer); // Non-essential steps
MI_DISP_DisableVideoLayer(DispLayer);
MI_DISP_UnBindVideoLayer(DispLayer, DispDev);
MI_DISP_Disable(DispDev);

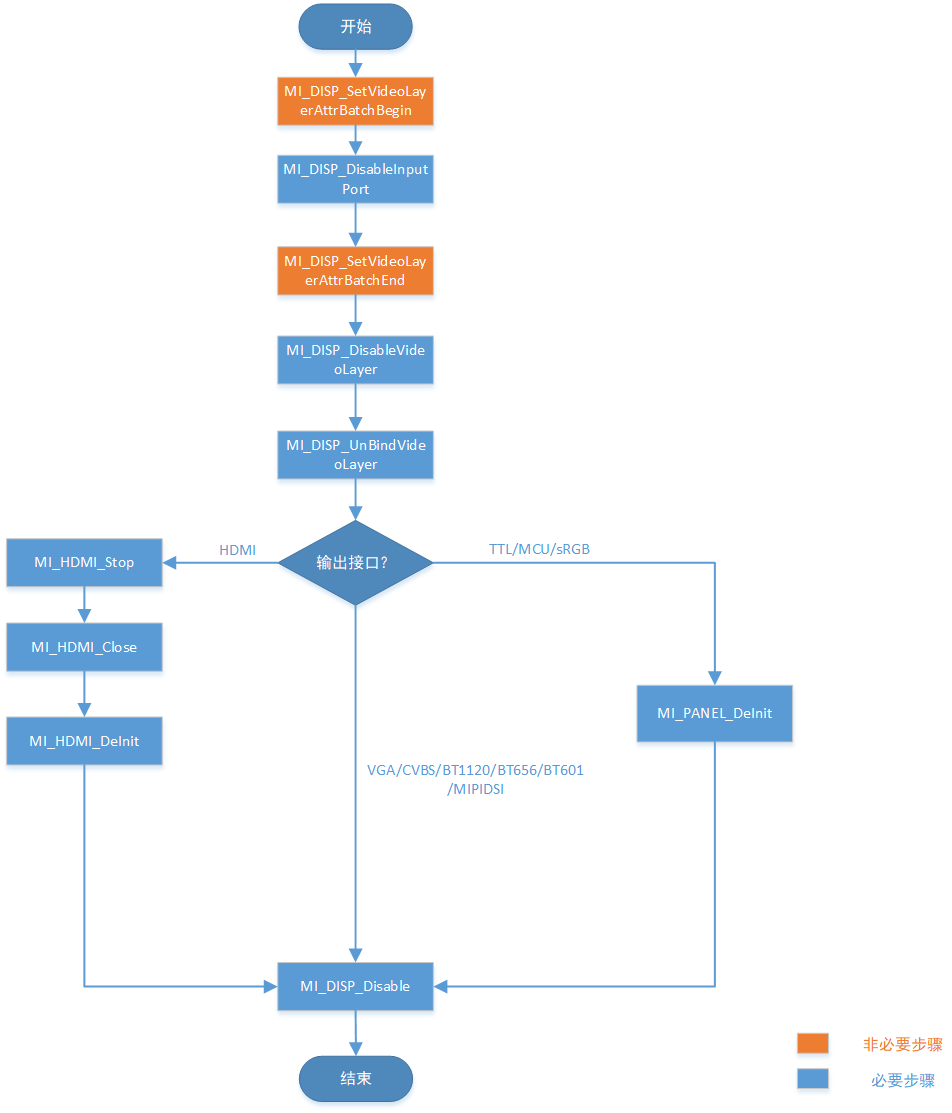

Flow Diagram
Related API

MI_DISP_Disable

2.2. MI_DISP_Disable¶

Function

Disable video output device

Syntax

MI_S32 MI_DISP_Disable(MI_DISP_DEV DispDev);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Flow Diagram
Related API

MI_DISP_Enable

2.3. MI_DISP_SetPubAttr¶

Function

Set public attribute of video output device

Syntax

MI_S32 MI_DISP_SetPubAttr(MI_DISP_DEV DispDev, MI_DISP_PubAttr_t *pstPubAttr);

Parameter

Parameter Name Description Input/Output

DispDev Output device number Input

pstPubAttr Pointer to output device public attribute structure Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Related API

MI_DISP_GetPubAttr

2.4. MI_DISP_GetPubAttr¶

Function

Get public attribute of video output device

Syntax

MI_S32 MI_DISP_GetPubAttr (MI_DISP_DEV DispDev, MI_DISP_PubAttr_t *pstPubAttr);

Parameter

Parameter Name Description Input/Output

DispDev Output device number Input

pstPubAttr Pointer to output device public attribute structure Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Related API

MI_DISP_SetPubAttr

2.5. MI_DISP_DeviceAttach¶

Function

Enable video output devices from the same source, which can achieve the effect of same screen with different output interfaces available simultaneously.

Syntax

MI_S32 MI_DISP_DeviceAttach(MI_DISP_DEV DispSrcDev, MI_DISP_DEV DispDstDev, const MI_DISP_DevAttachAttr_t *pstAttachAttr);

Parameter

Parameter Name	Description	Input/Output
DispSrcDev	Output device number (video source device)	Input
DispDstDev	Output device number (video destination device)	Input
pstAttachAttr	Video destination output attributes	Input

Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- This API only supports chips featuring two video devices.
- Currently supported chips include MSR930 and MSR650x.
Related API

MI_DISP_DeviceDetach

2.6. MI_DISP_DeviceDetach¶

Function

Disable video output devices from the same source

Syntax

MI_S32 MI_DISP_DeviceDetach(MI_DISP_DEV DispSrcDev, MI_DISP_DEV DispDstDev);

Parameter

Parameter Name Description Input/Output

DispSrcDev Output device number (video source device) Input

DispDstDev Output device number (video destination device) Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- This API only supports chips featuring two video devices.
- Currently supported chips include MSR930 and MSR650x.
Related API

MI_DISP_DeviceAttach

2.7. MI_DISP_EnableVideoLayer¶

Function

Enable video layer

Syntax

MI_S32 MI_DISP_EnableVideoLayer (MI_DISP_LAYER DispLayer);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Related API

MI_DISP_DisableVideoLayer

2.8. MI_DISP_DisableVideoLayer¶

Function

Disable video layer

Syntax

MI_S32 MI_DISP_DisableVideoLayer (MI_DISP_LAYER DispLayer);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure all input port of video layer has been disabled.
Related API

MI_DISP_EnableVideoLayer

2.9. MI_DISP_SetVideoLayerAttr¶

Function

Set video layer attribute

Syntax

MI_S32 MI_DISP_SetVideoLayerAttr(MI_DISP_LAYER DispLayer, MI_DISP_VideoLayerAttr_t *pstLayerAttr);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

pstLayerAttr Pointer to video layer attribute structure Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Related API

MI_DISP_GetVideoLayerAttr

2.10. MI_DISP_GetVideoLayerAttr¶

Function

Get video layer attribute

Syntax

MI_S32 MI_DISP_GetVideoLayerAttr(MI_DISP_LAYER DispLayer, MI_DISP_VideoLayerAttr_t *pstLayerAttr);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

pstLayerAttr Pointer to video layer attribute structure Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Related API

MI_DISP_SetVideoLayerAttr

2.11. MI_DISP_BindVideoLayer¶

Function

Bind video layer to specified device

Syntax

MI_S32 MI_DISP_BindVideoLayer(MI_DISP_LAYER DispLayer, MI_DISP_DEV DispDev);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

DispDev Output device number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the device has been enabled.
- Before calling this function, make sure the all input port of video layer has been disabled
- When DISP is bound to other modules, the mapping relationship between device/video layer/input port of DISP and the corresponding channel/port are as follows.

  Tiramisu:

  Muffin supports two binding relationships:

  Mochi supports two binding relationships:
Related API

MI_DISP_UnBindVideoLayer

2.12. MI_DISP_UnBindVideoLayer¶

Function

Unbind video layer from specified device

Syntax

MI_S32 MI_DISP_UnBindVideoLayer(MI_DISP_LAYER DispLayer, MI_DISP_DEV DispDev);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

DispDev Output device number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure all input port of video layer has been disabled.
- Before calling this function, make sure video layer has been disabled
Related API

MI_DISP_BindVideoLayer

2.13. MI_DISP_SetPlayToleration¶

Function

Set playback toleration

Syntax

MI_S32 MI_DISP_SetPlayToleration(MI_DISP_LAYER DispLayer, MI_U32 u32Toleration);

Parameter

Parameter Name	Description	Input/Output
DispLayer	Video output display layer number	Input
u32Toleration	Playback toleration used to adjust the error tolerance of the frame rate control algorithm	Input

Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Playback toleration is measured in unit of millisecond.
- Before calling this function, make sure the video layer has been enabled.
- Currently supported chips include MSR930 and MSR650x.
Related API

MI_DISP_GetPlayToleration

2.14. MI_DISP_GetPlayToleration¶

Function

Get playback toleration

Syntax

MI_S32 MI_DISP_GetPlayToleration (MI_DISP_LAYER DispLayer, MI_U32 *pu32Toleration);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

pu32Toleration Playback toleration. Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Playback toleration is measured in unit of millisecond.
- Before calling this function, make sure the video layer has been enabled.
- Currently supported chips include MSR930 and MSR650x.
Related API

MI_DISP_SetPlayToleration

2.15. MI_DISP_GetScreenFrame¶

Function

Get output screen frame data

Syntax

MI_S32 MI_DISP_GetScreenFrame(MI_DISP_LAYER DispLayer, MI_DISP_VideoFrame_t *pstVFrame, MI_S32 s32MilliSec);

Parameter

Parameter Name	Description	Input/Output
DispLayer	Video output display layer number	Input
pstVFrame	Pointer to the gotten output screen frame data structure	Output
s32MilliSec	Block the port when the timeout parameter s32MilliSec is set to -1; do not block the port when the timeout parameter s32MilliSec is set to 0. Value larger than 0 represents the timeout waiting time. The timeout waiting time is in unit of millisecond (ms).	Input

Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
- Currently supported chips include MSR930 and MSR650x.
Related API

MI_DISP_ReleaseScreenFrame

2.16. MI_DISP_ReleaseScreenFrame¶

Function

Release output screen frame data

Syntax

MI_S32 MI_DISP_ReleaseScreenFrame (MI_DISP_LAYER DispLayer, MI_DISP_VideoFrame_t *pstVFrame);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

pstVFrame Pointer to the gotten output screen frame data structure Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
- Currently supported chips include MSR930 and MSR650x.
Related API

MI_DISP_GetScreenFrame

2.17. MI_DISP_SetVideoLayerAttrBatchBegin¶

Function

Set the input port on the video layer related operations start.

Syntax

MI_S32 MI_DISP_SetVideoLayerAttrBatchBegin (MI_DISP_LAYER DispLayer);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
- The MI_DISP_SetVideoLayerAttrBatchBegin and MI_DISP_SetVideoLayerAttrBatchEnd must be paired, otherwise the related operations after MI_DISP_SetVideoLayerAttrBatchBegin will not take effect.
- This interface supports batch processing of the following interfaces:

  MI_DISP_EnableInputPort, MI_DISP_DisableInputPort, MI_DISP_HideInputPort, MI_DISP_ShowInputPort.
- It will take effect immediately for interfaces that do not support batch processing.
- Input port operations in batch processing are all effective after MI_DISP_SetVideoLayerAttrBatchEnd.

  For example, batch processing disables input port 0 ~ 15, interface order is MI_DISP_SetVideoLayerAttrBatchBegin, MI_DISP_DisableInputPort (0 ~ 15), MI_DISP_SetVideoLayerAttrBatchEnd.
- Currently supported chips include Muffin and Mochi.
Related API

MI_DISP_SetVideoLayerAttrBatchEnd

2.18. MI_DISP_SetVideoLayerAttrBatchEnd¶

Function

Set the input port on the video layer related operations end.

Syntax

MI_S32 MI_DISP_SetVideoLayerAttrBatchEnd (MI_DISP_LAYER DispLayer);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the MI_DISP_SetVideoLayerAttrBatchBegin has been called.
- Before calling this function, make sure the video layer has been enabled.
- Currently supported chips include Muffin and Mochi.
Related API

MI_DISP_SetVideoLayerAttrBatchBegin

2.19. MI_DISP_EnableInputPort¶

Function

Enable specified video input port

Syntax

MI_S32 MI_DISP_EnableInputPort (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

LayerInputPort Video input port number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
- Before calling this function, make sure video layer has been bound
Related API

MI_DISP_DisableInputPort

2.20. MI_DISP_DisableInputPort¶

Function

Disable specified video input port

Syntax

MI_S32 MI_DISP_DisableInputPort (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

LayerInputPort Video input port number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_EnableInputPort

2.21. MI_DISP_SetInputPortAttr¶

Function

Set specified video input port attribute

Syntax

MI_S32 MI_DISP_SetInputPortAttr(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_InputPortAttr_t *pstInputPortAttr);

Parameter

Parameter Name	Description	Input/Output
DispLayer	Video output display layer number	Input
LayerInputPort	Video input port number	Input
pstInputPortAttr	Video input port attribute pointer	Input

Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
- Before calling this function, make sure video layer has been bound .
Related API

MI_DISP_GetInputPortAttr

2.22. MI_DISP_GetInputPortAttr¶

Function

Get specified video input port attribute

Syntax

MI_S32 MI_DISP_GetInputPortAttr(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_InputPortAttr_t *pstInputPortAttr);

Parameter

Parameter Name	Description	Input/Output
DispLayer	Video output display layer number	Input
LayerInputPort	Video input port number	Input
pstInputPortAttr	Video input port attribute pointer	Output

Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
- Before calling this function, make sure video layer has been bound
Related API

MI_DISP_SetInputPortAttr

2.23. MI_DISP_SetInputPortDispPos¶

Function

Set specified video input port display position

Syntax

MI_S32 MI_DISP_SetInputPortDispPos(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, const MI_DISP_Position_t *pstDispPos);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

LayerInputPort Video input port number Input

pstDispPos Input port position pointer Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_GetInputPortDispPos

2.24. MI_DISP_GetInputPortDispPos¶

Function

Get specified video input port display position

Syntax

MI_S32 MI_DISP_GetInputPortDispPos(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_Position_t *pstDispPos);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

LayerInputPort Video input port number Input

pstDispPos Input port position pointer Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_SetInputPortDispPos

2.25. MI_DISP_PauseInputPort¶

Function

Pause specified video input port

Syntax

MI_S32 MI_DISP_PauseInputPort (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

LayerInputPort Video input port number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_DisableInputPort

MI_DISP_PauseInputPort

MI_DISP_ResumeInputPort

MI_DISP_StepInputPort

MI_DISP_ShowInputPort

MI_DISP_HideInputPort

2.26. MI_DISP_ResumeInputPort¶

Function

Resume specified video input port

Syntax

MI_S32 MI_DISP_ResumeInputPort (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

LayerInputPort Video input port number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_DisableInputPort

MI_DISP_PauseInputPort

MI_DISP_ResumeInputPort

MI_DISP_StepInputPort

MI_DISP_ShowInputPort

MI_DISP_HideInputPort

2.27. MI_DISP_StepInputPort¶

Function

Play specified video input port by single frame

Syntax

MI_S32 MI_DISP_StepInputPort (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

LayerInputPort Video input port number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
- Currently supported chips include MSR930 and MSR650x.
Related API

MI_DISP_DisableInputPort

MI_DISP_PauseInputPort

MI_DISP_ResumeInputPort

MI_DISP_StepInputPort

MI_DISP_ShowInputPort

MI_DISP_HideInputPort

2.28. MI_DISP_ShowInputPort¶

Function

Show specified video input port

Syntax

MI_S32 MI_DISP_ShowInputPort (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

LayerInputPort Video input port number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_DisableInputPort

MI_DISP_PauseInputPort

MI_DISP_ResumeInputPort

MI_DISP_StepInputPort

MI_DISP_ShowInputPort

MI_DISP_HideInputPort

2.29. MI_DISP_HideInputPort¶

Function

Hide specified video input port

Syntax

MI_S32 MI_DISP_HideInputPort (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

LayerInputPort Video input port number Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_DisableInputPort

MI_DISP_PauseInputPort

MI_DISP_ResumeInputPort

MI_DISP_StepInputPort

MI_DISP_ShowInputPort

MI_DISP_HideInputPort

2.30. MI_DISP_SetInputPortSyncMode¶

Function

Set specified video input port sync mode

Syntax

MI_S32 MI_DISP_SetInputPortSyncMode (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_SyncMode_e eMode);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

LayerInputPort Video input port number Input

eMode Input port sync mode Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
- Currently supported chips include MSR930 and MSR650x.

2.31. MI_DISP_QueryInputPortStat¶

Function

Query video input port status

Syntax

MI_S32 MI_DISP_QueryInputPortStat(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_QueryChanelStatus_t *pstStatus);

Parameter

Parameter Name Description Input/Output

DispLayer Video output display layer number Input

LayerInputPort Video input port number Input

pstStatus Input port status pointer Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.

2.32. MI_DISP_SetZoomInWindow¶

Function

Crop video input port.

Syntax

MI_S32 MI_DISP_SetZoomInWindow(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_VidWinRect_t *pstZoomRect);

Parameter

Parameter Name	Description	Input/Output
DispLayer	Video output video layer number.	Input
LayerInputPort	Video input port number.	Input
pstZoomRect	Video cropping attribute pointer.	Input

Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- The video layer must be enabled before calling.
Related API

MI_DISP_VidWinRect_t

2.33. MI_DISP_GetVgaParam¶

Function

Get VGA output device parameter

Syntax

MI_S32 MI_DISP_GetVgaParam(MI_DISP_DEV DispDev, MI_DISP_VgaParam_t *pstVgaParam);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input

pstVgaParam Pointer to VGA image output effect structure Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_SetVgaParam

2.34. MI_DISP_SetVgaParam¶

Function

Set VGA output device parameter

Syntax

MI_S32 MI_DISP_SetVgaParam (MI_DISP_DEV DispDev, MI_DISP_VgaParam_t *pstVgaParam);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input

pstVgaParam Pointer to VGA image output effect structure Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_GetVgaParam

2.35. MI_DISP_GetHdmiParam¶

Function

Get HDMI output device parameter

Syntax

MI_S32 MI_DISP_GetHdmiParam(MI_DISP_DEV DispDev, MI_DISP_HdmiParam_t *pstHdmiParam);

Parameter

Parameter Name Description Input/Output

DispDev Video Output device number Input

pstHdmiParam Pointer to HDMI image output effect structure Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_SetHdmiParam

2.36. MI_DISP_SetHdmiParam¶

Function

Set HDMI output device parameter

Syntax

MI_S32 MI_DISP_SetHdmiParam(MI_DISP_DEV DispDev, MI_DISP_HdmiParam_t *pstHdmiParam);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input

pstHdmiParam Pointer to HDMI image output effect structure Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_GetHdmiParam

2.37. MI_DISP_GetLcdParam¶

Function

Get LCD output device parameter

Syntax

MI_S32 MI_DISP_GetLcdParam(MI_DISP_DEV DispDev, MI_DISP_LcdParam_t *pstLcdParam);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input

pstLcdParam Pointer to LCD image output effect structure Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_SetLcdParam

2.38. MI_DISP_SetLcdParam¶

Function

Set LCD output device parameter

Syntax

MI_S32 MI_DISP_SetLcdParam(MI_DISP_DEV DispDev, MI_DISP_LcdParam_t *pstLcdParam);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input

pstLcdParam Pointer to LCD image output effect structure Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_GetLcdParam

2.39. MI_DISP_GetCvbsParam¶

Function

Get CVBS output device parameter

Syntax

MI_S32 MI_DISP_GetCvbsParam(MI_DISP_DEV DispDev, MI_DISP_CvbsParam_t *pstCvbsParam);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input

pstCvbsParam CVBS image output effect structure pointer Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_SetCvbsParam

2.40. MI_DISP_SetCvbsParam¶

Function

Set CVBS output device parameter

Syntax

MI_S32 MI_DISP_SetCvbsParam(MI_DISP_DEV DispDev, MI_DISP_CvbsParam_t *pstCvbsParam);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input

pstCvbsParam CVBS image output effect structure pointer Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
Related API

MI_DISP_GetCvbsParam

2.41. MI_DISP_DeviceGetColorTempeture¶

Function

Get output image color temperature information

Syntax

MI_S32 MI_DISP_DeviceGetColorTempeture(MI_DISP_DEV DispDev, MI_DISP_ColorTemperature_t *pstColorTempInfo);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input

pstColorTempInfo Pointer to output image color temperature structure Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
- Currently supported chips include Takoyaki series.
Related API

MI_DISP_DeviceSetColorTempeture

2.42. MI_DISP_DeviceSetColorTempeture¶

Function

Set image output color temperature information

Syntax

MI_S32 MI_DISP_DeviceSetColorTempeture(MI_DISP_DEV DispDev, MI_DISP_ColorTemperature_t *pstColorTempInfo);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input

pstColorTempInfo Pointer to output image color temperature structure Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
- Currently supported chips include Takoyaki series.
Related API

MI_DISP_DeviceGetColorTempeture

2.43. MI_DISP_DeviceSetGammaParam¶

Function

Adjust output image Gamma

Syntax

MI_S32 MI_DISP_DeviceSetGammaParam(MI_DISP_DEV DispDev, MI_DISP_GammaParam_t *pstGammaParam);

Parameter

Parameter Name Description Input/Output

DispDev Video output device number Input

pstGammaParam Pointer to output image gamma structure Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.
- Currently supported chips include Takoyaki series.

2.44. MI_DISP_SetVideoLayerRotateMode¶

Function

Set video layer rotation mode

Syntax

MI_S32 MI_DISP_SetVideoLayerRotateMode(MI_DISP_LAYER DispLayer, MI_DISP_RotateConfig_t *pstRotateConfig);

Parameter

Parameter Name Description Input/Output

DispLayer Video output layer number Input

pstRotateConfig Pointer to rotation angle structure of the output image Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Currently supported chips include Takoyaki/Tiramisu/Muffin series. Only Takoyaki support 180 degrees of rotation.
- Before calling this function, make sure video layer has been enabled.
- Before calling this function, make sure all input port of video layer has been disabled.
- Need to be bound by VDEC/SCL.
- Each video layer only supports one input port. For example, when turn on 90 degrees of rotation, each video layer can only enable input port 0.
- The rotate mode maximum supported resolution is 1920x1080.

2.45. MI_DISP_ClearInputPortBuffer¶

Function

Clear the content of specified video input port

Syntax

MI_S32 MI_DISP_ClearInputPortBuffer(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_BOOL  bClrAll);

Parameter

Parameter Name	Description	Input/Output
DispLayer	Video output layer number	Input
LayerInputPort	Video input port number	Input
bClrAll	The flag of clearing current display content	Input

Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Before calling this function, make sure the video layer has been enabled.

2.46. MI_DISP_InitDev¶

Function

Initialize disp device.

Syntax

MI_S32 MI_DISP_InitDev(MI_DISP_InitParam_t *pstInitParam);

Parameters

Parameter Name Description Input/Output

pstInitParam Initialization Parameter Currently unused and can be configured as NULL Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- If this interface is not called before calling any DISP API, the device will be initialized automatically in the code.

2.47. MI_DISP_DeInitDev¶

Function

De-initialize disp device.
Syntax
```
MI_S32 MI_DISP_DeInitDev(void);
```
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- This interface should be called after the device has been initialized; otherwise, a failed message will be returned.
- If this interface is not called after the app exited, the disp device will be auto de-initialized.
- Please call this interface before dynamically switching to the next interface type.

2.48. MI_DISP_SetWBCSource¶

Function

Set the write-back source of the video write-back device, the device or the video layer of the device can be set.

Syntax

MI_S32 MI_DISP_SetWBCSource(MI_DISP_WBC DispWbc, const MI_DISP_WBC_Source_t *pstWbcSource);

Parameters

Parameter Name Description Input/Output

DispWbc Write back the device number. Input

pstWbcSource Write back the source structure pointer. Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Note
- Only supports Tiramisu/ Muffin/ Mochi, and one write-back device.
- u32SourceId only supported 0/1.

Example

MI_DISP_WBC_Source_t stWbcSource;
MI_DISP_WBC_Attr_t stWbcAttr;

stWbcSource.eSourceType = MI_DISP_WBC_SOURCE_DEV;
stWbcSource.u32SourceId = 0;
MI_DISP_SetWBCSource(0, &stWbcSource);

stWbcAttr.stTargetSize.u32Width = 720;
stWbcAttr.stTargetSize.u32Height = 576;
stWbcAttr.ePixFormat = E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420;
MI_DISP_SetWBCAttr(0, &stWbcAttr);
MI_DISP_EnableWBC(0);

stSrcChnPort.eModId = E_MI_MODULE_ID_WBC;
stSrcChnPort.u32DevId = 0;
stSrcChnPort.u32ChnId = 0;
stSrcChnPort.u32PortId = 0;

stDstChnPort.eModId = E_MI_MODULE_ID_DISP;
stDstChnPort.u32DevId = 1;
stDstChnPort.u32ChnId = 0;
stDstChnPort.u32PortId = 0;

MI_SYS_BindChnPort(0, &stSrcChnPort, &stDstChnPort, 30, 30);

Related API

MI_DISP_GetWBCSource

MI_DISP_SetWBCAttr

MI_DISP_GetWBCAttr

MI_DISP_EnableWBC

MI_DISP_DisableWBC

2.49. MI_DISP_GetWBCSource¶

Function

Get the write-back source from the video write-back device.

Syntax

MI_S32 MI_DISP_GetWBCSource(MI_DISP_WBC DispWbc, MI_DISP_WBC_Source_t *pstWbcSource);

Parameters

Parameter Name Description Input/Output

DispWbc Write back the device number. Input

pstWbcSource Write back the source structure pointer. Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Related API

MI_DISP_SetWBCSource

MI_DISP_SetWBCAttr

MI_DISP_GetWBCAttr

MI_DISP_EnableWBC

MI_DISP_DisableWBC

2.50. MI_DISP_SetWBCAttr¶

Function

Set video write-back device attributes.

Syntax

MI_S32 MI_DISP_SetWBCAttr(MI_DISP_WBC DispWbc, const MI_DISP_WBC_Attr_t *pstWbcAttr);

Parameters

Parameter Name Description Input/Output

DispWbc Write back the device number. Input

pstWbcAttr Write back the device attribute structure pointer. Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Related API

MI_DISP_SetWBCSource

MI_DISP_GetWBCSource

MI_DISP_GetWBCAttr

MI_DISP_EnableWBC

MI_DISP_DisableWBC

2.51. MI_DISP_GetWBCAttr¶

Function

Get video write-back device attributes.

Syntax

MI_S32 MI_DISP_GetWBCAttr(MI_DISP_WBC DispWbc, MI_DISP_WBC_Attr_t *pstWbcAttr);

Parameters

Parameter Name Description Input/Output

DispWbc Write back the device number. Input

pstWbcAttr Write back the device attribute structure pointer. Output
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Related API

MI_DISP_SetWBCSource

MI_DISP_GetWBCSource

MI_DISP_SetWBCAttr

MI_DISP_EnableWBC

MI_DISP_DisableWBC

2.52. MI_DISP_EnableWBC¶

Function

Enable video write-back device.

Syntax

MI_S32 MI_DISP_EnableWBC(MI_DISP_WBC DispWbc);

Parameters

Parameter Name Description Input/Output

DispWbc Write back the device number. Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Related API

MI_DISP_SetWBCSource

MI_DISP_GetWBCSource

MI_DISP_SetWBCAttr

MI_DISP_GetWBCAttr

MI_DISP_DisableWBC

2.53. MI_DISP_DisableWBC¶

Function

Disable video write-back device.

Syntax

MI_S32 MI_DISP_DisableWBC(MI_DISP_WBC DispWbc);

Parameters

Parameter Name Description Input/Output

DispWbc Write back the device number. Input
Return Value
- Zero: Successful
- Non-zero: Failed, see error code for details
Requirement
- Header file: mi_disp.h, mi_disp_datatype.h
- Lib: libmi_disp.a / libmi_disp.so
Related API

MI_DISP_SetWBCSource

MI_DISP_GetWBCSource

MI_DISP_SetWBCAttr

MI_DISP_GetWBCAttr

MI_DISP_EnableWBC

3. DISP DATA TYPE¶

The table below lists the data type definitions of the DISP module:

Data Structure	Description
MI_DISP_DEV	Define the DISP_DEV type
MI_DISP_LAYER	Define the DISP_LAYER type
MI_DISP_INPUTPORT	Define the LAYER_INPUTPORT type
MI_DISP_Interface_e	Define the DISP interface type
MI_DISP_IntfSync_e	Define DISP timing type
MI_DISP_SyncInfo_t	Define the DISP sync information
MI_DISP_PubAttr_t	Define the DISP public attribute
MI_DISP_DevAttachMode_e	Define DISP video destination output mode
MI_DISP_DevAttachAttr_t	Define DISP video destination output attribute
MI_DISP_Csc_t	Define the DISP color space conversion information
MI_DISP_CscMattrix_e	Define the DISP color space conversion matrix
MI_DISP_VgaParam_t	Define the DISP VGA parameter information
MI_DISP_HdmiParam_t	Define the DISP HDMI parameter information
MI_DISP_LcdParam_t	Define the DISP LCD parameter information
MI_DISP_CvbsParam_t	Define the DISP CVBS output image parameter
MI_DISP_ColorTemperature_t	Define the DISP color temperature parameter
MI_DISP_GammaParam_t	Define the DISP Gamma parameter
MI_DISP_VideoLayerSize_t
Define the DISP video layer size
MI_DISP_VideoLayerAttr_t	Define the DISP video layer attribute
MI_DISP_RotateMode_e	Define the DISP rotation angle information
MI_DISP_RotateConfig_t	Define the DISP rotation parameter
MI_DISP_VidWinRect_t	Define the DISP window attribute
MI_DISP_InputPortAttr_t	Define the DISP input port attribute
MI_DISP_Position_t	Define the DISP input port position
MI_DISP_SyncMode_e	Define the DISP sync mode
MI_DISP_InputPortStatus_e	Define the DISP input port status type
MI_DISP_QueryChannelStatus_t	Define the DISP input port status information
MI_DISP_VideoFrame_t	Define the DISP video frame information
MI_DISP_InitParam_t	Define the initialized parameter of DISP device
MI_DISP_WBC	Define the type of DISP_WBC.
MI_DISP_WBC_SourceType_e	The source type of the data captured by the video write-back device
MI_DISP_WBC_Source_t	The write-back source of video write-back device
MI_DISP_WBC_TargetSize_t	The target size of the video write-back device
MI_DISP_WBC_Attr_t	Video write-back device attributes

3.1. MI_DISP_DEV¶

Description

Define the DISP_DEV type
Definition
```
typedef MI_S32 MI_DISP_DEV;
```

3.2. MI_DISP_LAYER¶

Description

Define the DISP_LAYER type.

Video layer is the output unit of DISP. For DISP with multiple input ports, all input ports are eventually spliced into a video layer and output to the monitor or LCD. For DISP with only one input port, the input port size is equal to the video layer size.
Definition
```
typedef MI_S32 MI_DISP_LAYER;
```

3.3. MI_DISP_INPUTPORT¶

Description

Define the LAYER_INPUTPORT type.
Definition
```
typedef MI_S32 MI_DISP_INPUTPORT;
```

3.4. MI_DISP_Interface_e¶

Description

Define video output interface.

Definition

typedef enum
{
    E_MI_DISP_INTF_CVBS = 0,
    E_MI_DISP_INTF_YPBPR,
    E_MI_DISP_INTF_VGA,
    E_MI_DISP_INTF_BT656,
    E_MI_DISP_INTF_BT1120,
    E_MI_DISP_INTF_HDMI,
    E_MI_DISP_INTF_LCD,
    E_MI_DISP_INTF_BT656_H,
    E_MI_DISP_INTF_BT656_L,
    E_MI_DISP_INTF_TTL,
    E_MI_DISP_INTF_MIPIDSI,
    E_MI_DISP_INTF_TTL_SPI_IF,
    E_MI_DISP_INTF_SRGB,
    E_MI_DISP_INTF_MCU,
    E_MI_DISP_INTF_MCU_NOFLM,
    E_MI_DISP_INTF_BT601,
    E_MI_DISP_INTF_BT1120_DDR,
    E_MI_DISP_INTF_MAX,
}MI_DISP_Interface_e;

Supported Timings

eIntfType	eIntfSync
HDMI	E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_1080P24, E_MI_DISP_OUTPUT_1920x1080_2997, E_MI_DISP_OUTPUT_1920x1080_5994, E_MI_DISP_OUTPUT_1920x1080_2398, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_720P24, E_MI_DISP_OUTPUT_1280x720_2997, E_MI_DISP_OUTPUT_1280x720_5994, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_640x480_60, E_MI_DISP_OUTPUT_848x480_60, E_MI_DISP_OUTPUT_800x600_60, E_MI_DISP_OUTPUT_2560x1440_60, E_MI_DISP_OUTPUT_2560x1440_50, E_MI_DISP_OUTPUT_2560x1440_30, E_MI_DISP_OUTPUT_2560x1600_60, E_MI_DISP_OUTPUT_1024x768_60, E_MI_DISP_OUTPUT_1280x1024_60, E_MI_DISP_OUTPUT_1366x768_60, E_MI_DISP_OUTPUT_1440x900_60, E_MI_DISP_OUTPUT_1280x800_60, E_MI_DISP_OUTPUT_1680x1050_60, E_MI_DISP_OUTPUT_1600x1200_60, E_MI_DISP_OUTPUT_1280x768_60, E_MI_DISP_OUTPUT_1280x960_60, E_MI_DISP_OUTPUT_1360x768_60, E_MI_DISP_OUTPUT_1400x1050_60, E_MI_DISP_OUTPUT_1600x900_60, E_MI_DISP_OUTPUT_1920x1440_60, E_MI_DISP_OUTPUT_1920x1200_60, E_MI_DISP_OUTPUT_3840x2160_30, E_MI_DISP_OUTPUT_3840x2160_25, E_MI_DISP_OUTPUt_3840x2160_24, E_MI_DISP_OUTPUT_3840x2160_2997
VGA	E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_1080P24, E_MI_DISP_OUTPUT_1920x1080_2997, E_MI_DISP_OUTPUT_1920x1080_5994, E_MI_DISP_OUTPUT_1920x1080_2398, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_720P24, E_MI_DISP_OUTPUT_1280x720_2997, E_MI_DISP_OUTPUT_1280x720_5994, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_640x480_60, E_MI_DISP_OUTPUT_848x480_60, E_MI_DISP_OUTPUT_800x600_60, E_MI_DISP_OUTPUT_1024x768_60, E_MI_DISP_OUTPUT_1280x1024_60, E_MI_DISP_OUTPUT_1366x768_60, E_MI_DISP_OUTPUT_1440x900_60, E_MI_DISP_OUTPUT_1280x800_60, E_MI_DISP_OUTPUT_1680x1050_60, E_MI_DISP_OUTPUT_1600x1200_60, E_MI_DISP_OUTPUT_1280x768_60, E_MI_DISP_OUTPUT_1280x960_60, E_MI_DISP_OUTPUT_1360x768_60, E_MI_DISP_OUTPUT_1400x1050_60, E_MI_DISP_OUTPUT_1600x900_60, E_MI_DISP_OUTPUT_1920x1200_60
HDMI+VGA	E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_1080P24, E_MI_DISP_OUTPUT_1920x1080_2997, E_MI_DISP_OUTPUT_1920x1080_5994, E_MI_DISP_OUTPUT_1920x1080_2398, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_720P24, E_MI_DISP_OUTPUT_1280x720_2997, E_MI_DISP_OUTPUT_1280x720_5994, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_640x480_60, E_MI_DISP_OUTPUT_848x480_60, E_MI_DISP_OUTPUT_800x600_60, E_MI_DISP_OUTPUT_1024x768_60, E_MI_DISP_OUTPUT_1280x1024_60, E_MI_DISP_OUTPUT_1366x768_60, E_MI_DISP_OUTPUT_1440x900_60, E_MI_DISP_OUTPUT_1280x800_60, E_MI_DISP_OUTPUT_1680x1050_60, E_MI_DISP_OUTPUT_1600x1200_60, E_MI_DISP_OUTPUT_1280x768_60, E_MI_DISP_OUTPUT_1280x960_60, E_MI_DISP_OUTPUT_1360x768_60, E_MI_DISP_OUTPUT_1400x1050_60, E_MI_DISP_OUTPUT_1600x900_60, E_MI_DISP_OUTPUT_1920x1200_60
BT1120	E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_USER
BT1120-DDR	E_MI_DISP_OUTPUT_3840x2160_30, E_MI_DISP_OUTPUT_3840x2160_25, E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_USER
BT656	E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_USER
CVBS	E_MI_DISP_OUTPUT_PAL, E_MI_DISP_OUTPUT_NTSC
TTL	E_MI_DISP_OUTPUT_USER
MIPIDSI	E_MI_DISP_OUTPUT_USER
MCU	E_MI_DISP_OUTPUT_USER
MCU-NOFLM	E_MI_DISP_OUTPUT_USER
SRGB	E_MI_DISP_OUTPUT_USER

Note
- E_MI_DISP_INTF_BT1120 is single edge sampling; E_MI_DISP_INTF_BT1120_DDR is double edge sampling
Related Data Type and Interface

MI_DISP_PubAttr_t

MI_DISP_SetPubAttr

3.5. MI_DISP_IntfSync_e¶

Description

define DISP timing type.

Definition

typedef enum
{
    E_MI_DISP_OUTPUT_PAL = 0,
    E_MI_DISP_OUTPUT_NTSC,
    E_MI_DISP_OUTPUT_960H_PAL,  /* ITU-R BT.1302 960 x 576 at 50 Hz (interlaced)*/
    E_MI_DISP_OUTPUT_960H_NTSC, /* ITU-R BT.1302 960 x 480 at 60 Hz (interlaced)*/

    E_MI_DISP_OUTPUT_480i60,
    E_MI_DISP_OUTPUT_576i50,
    E_MI_DISP_OUTPUT_480P60,
    E_MI_DISP_OUTPUT_576P50,
    E_MI_DISP_OUTPUT_720P50,
    E_MI_DISP_OUTPUT_720P60,
    E_MI_DISP_OUTPUT_1080P24,
    E_MI_DISP_OUTPUT_1080P25,
    E_MI_DISP_OUTPUT_1080P30,
    E_MI_DISP_OUTPUT_1080I50,
    E_MI_DISP_OUTPUT_1080I60,
    E_MI_DISP_OUTPUT_1080P50,
    E_MI_DISP_OUTPUT_1080P60,

    E_MI_DISP_OUTPUT_640x480_60,   /* VESA 640 x 480 at 60 Hz (non-interlaced) CVT */
    E_MI_DISP_OUTPUT_800x600_60,   /* VESA 800 x 600 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1024x768_60,  /* VESA 1024 x 768 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1280x1024_60, /* VESA 1280 x 1024 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1366x768_60,  /* VESA 1366 x 768 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1440x900_60,  /* VESA 1440 x 900 at 60 Hz (non-interlaced) CVT Compliant */
    E_MI_DISP_OUTPUT_1280x800_60,  /* 1280*800@60Hz VGA@60Hz*/
    E_MI_DISP_OUTPUT_1680x1050_60, /* VESA 1680 x 1050 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1920x2160_30, /* 1920x2160_30 */
    E_MI_DISP_OUTPUT_1600x1200_60, /* VESA 1600 x 1200 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1920x1200_60, /* VESA 1920 x 1600 at 60 Hz (non-interlaced) CVT (Reduced Blanking)*/

    E_MI_DISP_OUTPUT_2560x1440_30,   /* 2560x1440_30 */
    E_MI_DISP_OUTPUT_2560x1440_50,   /* 2560x1440_50 */
    E_MI_DISP_OUTPUT_2560x1440_60,   /* 2560x1440_60 */
    E_MI_DISP_OUTPUT_2560x1600_60,   /* 2560x1600_60 */
    E_MI_DISP_OUTPUT_3840x2160_25,   /* 3840x2160_25 */
    E_MI_DISP_OUTPUT_3840x2160_30,   /* 3840x2160_30 */
    E_MI_DISP_OUTPUT_3840x2160_60,   /* 3840x2160_60 */
    E_MI_DISP_OUTPUT_1920x1080_5994, /* 1920x1080_59.94 */
    E_MI_DISP_OUTPUT_1920x1080_2997, /* 1920x1080_29.97 */
    E_MI_DISP_OUTPUT_1280x720_5994,  /* 1280X720_59.94 */
    E_MI_DISP_OUTPUT_1280x720_2997,  /* 1280x720_29.97 */
    E_MI_DISP_OUTPUT_3840x2160_2997, /* 3840x2160_29.97 */
    E_MI_DISP_OUTPUT_720P24,         /* 1280x720_24 */
    E_MI_DISP_OUTPUT_720P25,         /* 1280x720_25 */
    E_MI_DISP_OUTPUT_720P30,         /* 1280x720_30 */
    E_MI_DISP_OUTPUT_1920x1080_2398, /* 1920x1080_23.98*/
    E_MI_DISP_OUTPUt_3840x2160_24,   /* 3840x2160_24 */
    E_MI_DISP_OUTPUT_848x480_60,     /* 848x480_60 */
    E_MI_DISP_OUTPUT_1280x768_60,    /* 1280x768_60 */
    E_MI_DISP_OUTPUT_1280x960_60,    /* 1280x960_60 */
    E_MI_DISP_OUTPUT_1360x768_60,    /* 1360x768_60 */
    E_MI_DISP_OUTPUT_1400x1050_60,   /* 1400x1050_60 */
    E_MI_DISP_OUTPUT_1600x900_60,    /* 1600x900_60 */
    E_MI_DISP_OUTPUT_1920x1440_60,    /* 1920x1440_60 */

    E_MI_DISP_OUTPUT_USER,
    E_MI_DISP_OUTPUT_MAX,
} MI_DISP_OutputTiming_e;

Member

For each Timing definition, LCD display should use E_MI_DISP_OUTPUT_USER.
Related Data Type and Interface

MI_DISP_PubAttr_t

MI_DISP_SetPubAttr。

3.6. MI_DISP_SyncInfo_t¶

Description

Define the DISP sync information

Definition

typedef struct MI_DISP_SyncInfo_s
{
    MI_BOOL  bSynm;     /* sync mode(0:timing,as BT.656; 1:signal,as LCD) */
    MI_BOOL  bIop;      /* interlaced or progressive display(0:i; 1:p) */
    MI_U8     u8Intfb;   /* interlace bit width while output */

    MI_U16   u16VStart ;   /* vertical de start */
    MI_U16   u16Vact ;   /* vertical active area */
    MI_U16   u16Vbb;    /* vertical back blank porch */
    MI_U16   u16Vfb;    /* vertical front blank porch */

    MI_U16   u16HStart;   /* herizontal de start */
    MI_U16   u16Hact;   /* herizontal active area */
    MI_U16   u16Hbb;    /* herizontal back blank porch */
    MI_U16   u16Hfb;    /* herizontal front blank porch */
    MI_U16   u16Hmid;   /* bottom herizontal active area */

    MI_U16   u16Bvact;  /* bottom vertical active area */
    MI_U16   u16Bvbb;   /* bottom vertical back blank porch */
    MI_U16   u16Bvfb;   /* bottom vertical front blank porch */

    MI_U16   u16Hpw;    /* horizontal pulse width */
    MI_U16   u16Vpw;    /* vertical pulse width */

    MI_BOOL  bIdv;      /* inverse data valid of output */
    MI_BOOL  bIhs;      /* inverse horizontal synch signal */
    MI_BOOL  bIvs;      /* inverse vertical synch signal */
    MI_U32   u32FrameRate;
} MI_DISP_SyncInfo_t

Member

Member Name	Description
u16VStart	Start from the vertical effective. Generally equal to Vsync width + Vsync back porch
u16Vact	Line number of each frame
u16Vbb	Vsync back porch
u16Vfb	Vsync front porch
u16HStart	Start from the horizontal effective. Generally equal to Hsync width + Hsync back porch
u16Hact	Pixel count of each line
u16Hbb	Hsync back porch
u16Hfb	Hsync front porch
u16Hpw	Hsync width
u16Vpw	Vsync width
u32Framerate	Frame rate

Parameters not listed in the table are parameters not used yet.

Note
- Only used when pictures are shown on LCD.
Related Data Type and Interface

MI_DISP_PubAttr_t

MI_DISP_SetPubAttr

3.7. MI_DISP_PubAttr_t¶

Description

Define the DISP public attribute

Definition

typedef struct MI_DISP_PubAttr_s
{
    MI_U32      u32BgColor;         /* Background color of a device */
    MI_DISP_Interface_e      eIntfType;         /* Type of a VO interface */
    MI_DISP_IntfSync_e       eIntfSync;          /* Type of a VO interface timing */
    MI_DISP_SyncInfo_t       stSyncInfo;          /* Information about VO interface timings */
} MI_DISP_PubAttr_t;

Member

Member	Description
u32BgColor	Set the background color
u32IntfType	Interface definition: MI_DISP_Interface_e
eIntfSync	Interface timing definition: MI_DISP_IntfSync_e
stSyncInfo	User-defined interface timing definition: MI_DISP_SyncInfo_t

Note
- stSyncInfo is used for E_MI_DISP_OUTPUT_USER; that is, the case in which the interface timing is user-defined.
- Currently, all chips do not support custom background color, and the default background color is black.
Related Data Type and Interface

MI_DISP_PubAttr_t

MI_DISP_SetPubAttr

3.8. MI_DISP_DevAttachMode_e¶

Description

Define DISP video destination output mode.

Definition

typedef enum

{

    E_MI_DISP_ATTACH_DEFAULT = 0,

    E_MI_DISP_ATTACH_OSD_MODE,

    E_MI_DISP_ATTACH_VIDEO_MODE,

}MI_DISP_DevAttachMode_e;

Member

Member	Description
E_MI_DISP_ATTACH_DEFAULT	Destination output default mode
E_MI_DISP_ATTACH_OSD_MODE	Output video screen with OSD superimposed
E_MI_DISP_ATTACH_VIDEO_MODE	Output video screen only

Related Data Type and Interface

MI_DISP_DeviceAttach

MI_DISP_DevAttachAttr_t

3.9. MI_DISP_DevAttachAttr_t¶

Description

Define DISP video destination output attribute.

Definition

typedef struct MI_DISP_DevAttachAttr_s

{

    MI_DISP_DevAttachMode_e eDevAttachMode;

}MI_DISP_DevAttachAttr_t;

Member

Member Description

eDevAttachMode Set video destination output mode
Related Data Type and Interface

MI_DISP_DeviceAttach

3.10. MI_DISP_Csc_t¶

Description

Define the DISP color space conversion information

Definition

typedef struct MI_DISP_Csc_s

{

    MI_DISP_CscMattrix_e eCscMatrix;

    MI_U32 u32Luma;           /* luminance:  0 ~ 100 default: 50 */

    MI_U32 u32Contrast;         /* contrast :  0 ~ 100 default: 50 */

    MI_U32 u32Hue;           /* hue   :  0 ~ 100 default: 50 */

    MI_U32 u32Saturation;        /* saturation: 0 ~ 100 default: 50 */

} MI_DISP_Csc_t;

Member

Member	Description
eCscMatrix	Color space conversion matrix
u32Luma	Luminance adjustment
u32Contrast	Contrast adjustment
u32Hue	Hue adjustment
u32Saturation	Saturation adjustment

Note
- Currently supported chips include MSR930, MSR650x, Taiyaki, and Takoyaki series.
Related Data Type and Interface

MI_DISP_GetVgaParam

MI_DISP_SetVgaParam

MI_DISP_GetHdmiParam

MI_DISP_SetHdmiParam

MI_DISP_GetLcdParam

MI_DISP_SetLcdParam

3.11. MI_DISP_CscMattrix_e¶

Description

Define the DISP color space conversion matrix

Definition

typedef enum

{

    E_MI_DISP_CSC_MATRIX_BYPASS = 0,    /* do not change color space */

    E_MI_DISP_CSC_MATRIX_BT601_TO_RGB_PC,  /* change color space from BT.601 to RGB */

    E_MI_DISP_CSC_MATRIX_BT709_TO_RGB_PC,  /* change color space from BT.709 to RGB */

    E_MI_DISP_CSC_MATRIX_RGB_TO_BT601_PC,  /* change color space from RGB to BT.601 */

    E_MI_DISP_CSC_MATRIX_RGB_TO_BT709_PC, /* change color space from RGB to BT.709 */

    E_MI_DISP_CSC_MATRIX_NUM

} MI_DISP_CscMatrix_e;

Member

Member	Description
E_MI_DISP_CSC_MATRIX_BYPASS	Bypass color space conversion
E_MI_DISP_CSC_MATRIX_BT601_TO_RGB_PC	BT.601 to RGB color space CSC matrix
E_MI_DISP_CSC_MATRIX_BT709_TO_RGB_PC	BT.709 to RGB color space CSC matrix
E_MI_DISP_CSC_MATRIX_RGB_TO_BT601_PC	RGB to BT.601 color space CSC matrix
E_MI_DISP_CSC_MATRIX_RGB_TO_BT709_PC	RGB to BT.709 color space CSC matrix

Note
- Currently supported chips include MSR930, MSR650x, Taiyaki, and Takoyaki series.
Related Data Type and Interface

MI_DISP_GetVgaParam

MI_DISP_SetVgaParam

MI_DISP_GetHdmiParam

MI_DISP_SetHdmiParam

MI_DISP_GetLcdParam

MI_DISP_SetLcdParam

3.12. MI_DISP_VgaParam_t¶

Description

Define the DISP VGA parameter information

Definition

typedef struct MI_DISP_VgaParam_s

{

    MI_DISP_Csc_t stCsc;     /* color space */

    MI_U32 u32Gain;       /* current gain of VGA signals. [0, 64). default:0x30 */

    MI_U32 u32Sharpness;

} MI_DISP_VgaParam_t;

Member

Member Description

stCsc Color space conversion information definition

u32Gain Signal strength gain

u32Sharpness Sharpness definition
Note
- Currently supported chips include MSR930, MSR650x, Taiyaki series.
Related Data Type and Interface

MI_DISP_Csc_t

MI_DISP_GetVgaParam

MI_DISP_SetVgaParam

3.13. MI_DISP_HdmiParam_t¶

Description

Define the DISP HDMI parameter information

Definition

typedef struct MI_DISP_HdmiParam_s

{

    MI_DISP_Csc_t stCsc;           /* color space */

    MI_U32 u32Gain;     /* current gain of HDMI signals. [0, 64). default:0x30 */

    MI_U32 u32Sharpness;

} MI_DISP_HdmiParam_t;

Member

Member Description

stCsc Color space conversion information definition

u32Gain Signal strength gain

u32Sharpness Definition of sharpness
Note
- Currently supported chips include MSR930, MSR650x, Taiyaki series.
Related Data Type and Interface

MI_DISP_Csc_t

MI_DISP_GetHdmiParam

MI_DISP_SetHdmiParam

3.14. MI_DISP_LcdParam_t¶

Description

Define the DISP LCD parameter information

Definition

typedef struct MI_DISP_LcdParam_s

{

    MI_DISP_Csc_t stCsc;           /* color space */

    MI_U32 u32Sharpness;

} MI_DISP_LcdParam_t;

Member

Member Description

stCsc Color space conversion information definition

u32Sharpness Sharpness definition
Note
- Currently supported chips include Takoyaki series.
Related Data Type and Interface

MI_DISP_Csc_t

MI_DISP_GetLcdParam

MI_DISP_SetLcdParam

3.15. MI_DISP_CvbsParam_t¶

Description

Define the DISP CVBS output image parameter

Definition

typedef struct MI_DISP_CvbsParam_s

{

    MI_DISP_Csc_t stCsc;           /* color space */

    MI_U32 u32Sharpness;

} MI_DISP_CvbsParam_t;

Member

Member Description

stCsc Color conversion information definition

u32Sharpness Sharpness definition
Related Data Type and Interface

MI_DISP_Csc_t

MI_DISP_GetCvbsParam

MI_DISP_SetCvbsParam

3.16. MI_DISP_ColorTemperature_t¶

Description

Define the DISP color temperature parameter

Definition

typedef struct
{
    MI_U16 u16RedOffset;
    MI_U16 u16GreenOffset;
    MI_U16 u16BlueOffset;

    MI_U16 u16RedColor;  // 00~FF, 0x80 is no change
    MI_U16 u16GreenColor;// 00~FF, 0x80 is no change
    MI_U16 u16BlueColor; // 00~FF, 0x80 is no change
}MI_DISP_ColorTemperature_t;

Member

Member Description

u16RedColor Red component definition

u16GreenColor Green component definition

u16BlueColor Blue component definition
Note
- Currently supported chips include Takoyaki series.
Related Data Type and Interface

MI_DISP_DeviceGetColorTempeture

MI_DISP_DeviceSetColorTempeture

3.17. MI_DISP_GammaParam_t¶

Description

Define the DISP Gamma parameter

Definition

typedef struct

{

    MI_BOOL bEn;

    MI_U16 u16EntryNum;

    MI_U8 *pu8ColorR;

    MI_U8 *pu8ColorG;

    MI_U8 *pu8ColorB;

}MI_DISP_GammaParam_t;

Member

Member	Description
bEn	Enable gamma adjustment
u16EntryNum	The number of members in gamma table
pu8ColorR	Pointer to red component gamma table
pu8ColorG	Pointer to green component gamma table
pu8ColorB	Pointer to blue component gamma table

Note
- Currently supported chips include Takoyaki series.
Related Data Type and Interface

MI_DISP_DeviceSetGammaParam

3.18. MI_DISP_VideoLayerSize_t¶

Description

Define the DISP video layer size

Definition

typedef struct MI_DISP_VideoLayerSize_s

{

    MI_U32 u32Width;

    MI_U32 u32Height;

} MI_DISP_VideoLayerSize_t;

Member

Member Description

u32Width X-axis width

u32Height Y-axis height
Related Data Type and Interface

MI_DISP_SetVideoLayerAttr

MI_DISP_GetVideoLayerAttr

3.19. MI_DISP_VideoLayerAttr_t¶

Description

Define the DISP video layer attribute

Definition

typedef struct MI_DISP_VideoLayerAttr_s
{
    MI_DISP_VidWinRect_t   stDispWin;        /* Display resolution */
    MI_DISP_VideoLayerSize_t stLayerSize;        /* Canvas size of the video layer */
    MI_DISP_PixelFormat_e ePixFormat;         /* Pixel format of the video layer */
} MI_DISP_VideoLayerAttr_t;

Member

Member Description

stDispWin Input port display position

stLayerSize Video layer size

ePixFormat Input pixel data format
Related Data Type and Interface

MI_DISP_SetVideoLayerAttr

MI_DISP_GetVideoLayerAttr

3.20. MI_DISP_RotateMode_e¶

Description

Define the DISP rotation angle information

Definition

typedef enum

{

    E_MI_DISP_ROTATE_NONE,

    E_MI_DISP_ROTATE_90,

    E_MI_DISP_ROTATE_180,

    E_MI_DISP_ROTATE_270,

    E_MI_DISP_ROTATE_NUM,

}MI_DISP_RotateMode_e;

Member

Member	Description
E_MI_DISP_ROTATE_NONE	Do not rotate
E_MI_DISP_ROTATE_90	Rotate 90 degrees clockwise
E_MI_DISP_ROTATE_180	Rotate 180 degrees clockwise
E_MI_DISP_ROTATE_270	Rotate 270 degrees clockwise

Note
- Currently supported chip series include Takoyaki/ Tiramisu/ Muffin.
- Only Takoyaki supports rotation by 180 degrees.
Related Data Type and Interface

MI_DISP_SetVideoLayerRotateMode

3.21. MI_DISP_RotateConfig_t¶

Description

Define the DISP rotation parameter

Definition

typedef struct MI_DISP_RotateConfig_s

{

    MI_DISP_RotateMode_e eRotateMode;

}MI_DISP_RotateConfig_t;

Member

Member Description

eRotateMode rotation angle enum
Note
- Currently supported chip series include Takoyaki/ Tiramisu/ Muffin.
- Only Takoyaki supports rotation by 180 degrees.
Related Data Type and Interface

MI_DISP_SetVideoLayerRotateMode

3.22. MI_DISP_VidWinRect_t¶

Description

Define the DISP window attribute

Definition

typedef struct MI_DISP_VidWinRect_s

{

    MI_U16 u16X;

    MI_U16 u16Y;

    MI_U16 u16Width;

    MI_U16 u16Height;

} MI_DISP_VidWinRect_t;

Member

Member Description

u16X X-axis start point

u16Y Y-axis start point

u16Width X-axis width

u16Height Y-axis height
Note
- x, y, width and height of each window must be aligned with 2pixels.
- Cropping cannot exceed the source area.
Related Data Type and Interface

MI_DISP_SetZoomInWindow

3.23. MI_DISP_InputPortAttr_t¶

Description

Define the DISP input port attribute

Definition

typedef struct MI_DISP_InputPortAttr_s

{

    MI_DISP_VidWinRect_t stDispWin;           /* rect of video out chn */

    MI_U16 u16SrcWidth;

    MI_U16 u16SrcHeight;

    MI_SYS_CompressMode_e eDecompressMode;

} MI_DISP_InputPortAttr_t;

Member

Member	Description
stDispWin	Specify input port output window position and size
u16SrcWidth	Specify input image width
u16SrcHeight	Specify input image height
eDecompressMode	Specify input decompression mode

Note
- The Takoyaki/ Taiyaki/ Tiramisu/ Muffin/ Mochi series chips can can scale up for each port (scaling down is not supported), and the maximum magnification in the H/V direction is 16 times.
- If the chip cannot scale up the port independently, u16SrcWidth should be equal to u16Width defined in stDispWin, and u16SrcHeight should be equal to u16Height defined in stDispWin.
- For a video layer with multiple input ports, the display position of each port on the video layer can be set arbitrarily.
- The display position of the input port cannot be superimposed with the enabled port (including Hide), but the disabled port can be superimposed
- x, y, width and height of each window must be aligned with 2pixels.
- About eDecompressMode, Mochi series chips support E_MI_SYS_COMPRESS_MODE_NONE/E_MI_SYS_COMPRESS_MODE_TO_6BIT, other chips only support E_MI_SYS_COMPRESS_MODE_NONE.
Related Data Type and Interface

MI_DISP_SetInputPortAttr

MI_DISP_GetInputPortAttr

3.24. MI_DISP_Position_t¶

Description

Define the DISP input port position

Definition

typedef struct MI_DISP_Position_s

{

    MI_U16 u16X;

    MI_U16 u16Y;

} MI_DISP_Position_t;

Member

Member Description

u16X X-axis start point

u16Y Y-axis start point
Related Data Type and Interface

MI_DISP_GetInputPortDispPos

MI_DISP_SetInputPortDispPos

3.25. MI_DISP_SyncMode_e¶

Description

Define the DISP sync mode

Definition

typedef enum

{

    E_MI_DISP_SYNC_MODE_INVALID = 0,

    E_MI_DISP_SYNC_MODE_CHECK_PTS,

    E_MI_DISP_SYNC_MODE_FREE_RUN,

    E_MI_DISP_SYNC_MODE_NUM,

} MI_DISP_SyncMode_e;

Member

Member Description

E_MI_DISP_SYNC_MODE_INVALID Invalid sync mode

E_MI_DISP_SYNC_MODE_CHECK_PTS Check the PTS sync mode

E_MI_DISP_SYNC_MODE_FREE_RUN Bypass the PTS sync mode
Note
- Currently supported chips include MSR930 and MSR650x.
Related Data Type and Interface

MI_DISP_SetInputPortSyncMode

3.26. MI_DISP_InputPortStatus_e¶

Description

Define the DISP input port status type

Definition

typedef enum

{

    E_MI_DISP_INPUTPORT_STATUS_INVALID = 0,

    E_MI_DISP_INPUTPORT_STATUS_PAUSE,

    E_MI_DISP_INPUTPORT_STATUS_RESUME,

    E_MI_DISP_INPUTPORT_STATUS_STEP,

    E_MI_DISP_INPUTPORT_STATUS_REFRESH,

    E_MI_DISP_INPUTPORT_STATUS_SHOW,

    E_MI_DISP_INPUTPORT_STATUS_HIDE,

    E_MI_DISP_ INPUTPORT_STATUS _NUM,

} MI_DISP_InputPortStatus_e;

Member

Member	Description
E_MI_DISP_INPUTPORT_STATUS_INVALID	Invalid status mode
E_MI_DISP_INPUTPORT_STATUS_PAUSE	Pause status
E_MI_DISP_INPUTPORT_STATUS_RESUME	Resume status
E_MI_DISP_INPUTPORT_STATUS_STEP	Step status
E_MI_DISP_INPUTPORT_STATUS_REFRESH	Refresh status
E_MI_DISP_INPUTPORT_STATUS_SHOW	Show status
E_MI_DISP_INPUTPORT_STATUS_HIDE	Hide status

3.27. MI_DISP_QueryChannelStatus_t¶

Description

Define the DISP input port status information

Definition

typedef struct MI_DISP_QueryChannelStatus_s
{
    MI_BOOL bEnable;
    MI_DISP_InputPortStatus_e eStatus;
} MI_DISP_QueryChannelStatus_t;

Member

Member Description

bEnable Input port enable status

eStatus Input port status type
Related Data Type and Interface

MI_DISP_InputPortStatus_e

MI_DISP_QueryInputPortStat

3.28. MI_DISP_VideoFrame_t¶

Description

Define the DISP video frame information.

Definition

typedef struct MI_DISP_VideoFrame_s

{

    MI_U32     u32Width;

    MI_U32     u32Height;

    MI_DISP_PixelFormat_e ePixelFormat;

    MI_PHY     aphyAddr[3];

    Void *      *pavirAddr[3];

    MI_U64     u64pts;

    MI_U32     u32PrivateData;

} MI_DISP_VideoFrame_t;

Member

Member	Description
u32Width	Image width
u32Height	Image height
ePixelFormat	Pixel format
u32PhyAddr	Image data physical address
pVirAddr	Image data virtual address
u64pts	Image data timestamp
u32PrivateData	Private data

Note
- Currently supported chips include MSR930 and MSR650x.
Related Data Type and Interface

MI_DISP_GetScreenFrame

MI_DISP_ReleaseScreenFrame

3.29. MI_DISP_InitParam_t¶

Description

DISP device initialization parameter.

Definition

typedef struct MI_DISP_InitParam_s

{

    MI_U32 u32DevId;

    MI_U8 *u8Data;

} MI_DISP_InitParam_t;

Member

Member Description

u32DevId Device ID

u8Data Data pointer buffer
Related Data Type and Interface

MI_DISP_InitDev

3.30. MI_DISP_WBC¶

Description

Define the type of DISP_WBC.
Definition
```
typedef MI_S32 MI_DISP_WBC
```

3.31. MI_DISP_WBC_SourceType_e¶

Description

The source type of the data captured by the video write-back device, used to distinguish whether it is from the video layer or the device.

Definition

typedef enum {

    MI_DISP_WBC_SOURCE_DEV,

    MI_DISP_WBC_SOURCE_VIDEO,

}MI_DISP_WBC_SourceType_e;

Member

Member Description

MI_DISP_WBC_SOURCE_DEV The write back source is device (video + UI)

MI_DISP_WBC_SOURCE_VIDEO The write back source is video layer (video only)
Related Data Type and Interface

MI_DISP_SetWBCSource

MI_DISP_GetWBCSource

3.32. MI_DISP_WBC_Source_t¶

Description

The write-back source of video write-back device.

Definition

typedef struct MI_DISP_WBC_Source_s

{

    MI_DISP_WBC_SourceType_e eSourceType;

    MI_U32 u32SourceId;

}MI_DISP_WBC_Source_t;

Member

Member Description

eSourceType Write back source type

u32SourceId Write back source device ID
Related Data Type and Interface

MI_DISP_SetWBCSource

MI_DISP_GetWBCSource

3.33. MI_DISP_WBC_TargetSize_t¶

Description

The target size of the video write-back device.

Definition

typedef struct MI_DISP_WBC_TargetSize_s

{

    MI_U32 u32Width;

    MI_U32 u32Height;

}MI_DISP_WBC_TargetSize_t;

Member

Member Description

u32Width Width of write-back target

u32Height Height of write-back target
Note
- WBC supports zooming out, but not zooming in. If the target resolution is smaller than the source resolution, it will be automatically zooming out.
Related Data Type and Interface

MI_DISP_SetWBCAttr

MI_DISP_GetWBCAttr

3.34. MI_DISP_WBC_Attr_t¶

Description

Video write-back device attributes.

Definition

typedef struct MI_DISP_WBC_Attr_s

{

    MI_DISP_WBC_TargetSize_t stTargetSize;

    MI_SYS_PixelFormat_e ePixFormat;

    MI_SYS_CompressMode_e eCompressMode;

}MI_DISP_WBC_Attr_t;

Member

Member Description

stTargetSize Write-back target size

ePixFormat Pixel format of write-back image

eCompressMode Compress mode
Note
- eDecompressMode is only supported by Mochi series chips.
Related Data Type and Interface

MI_DISP_SetWBCAttr

MI_DISP_GetWBCAttr

4. DISP ERROR CODE¶

The following table lists the DISP API error codes.

Error Code	Macro Definition	Description
0xA00F2001	MI_ERR_DISP_INVALID_DEVID	Invalid Device ID
0xA00F2002	MI_ERR_DISP_INVALID_CHNID	Invalid Input Port ID
0xA00F2003	MI_ERR_DISP_ILLEGAL_PARAM	Illegal parameter
0xA00F2006	MI_ERR_DISP_NULL_PTR	Null pointer in function parameter
0xA00F2008	MI_ERR_DISP_NOT_SUPPORT	Operation not supported
0xA00F2009	MI_ERR_DISP_NOT_PERMIT	Operation not permitted
0xA00F200C	MI_ERR_DISP_NO_MEM	No memory
0xA00F2010	MI_ERR_DISP_SYS_NOTREADY	System not ready
0xA00F2012	MI_ERR_DISP_BUSY	System busy
0xA00F2040	MI_ERR_DISP_DEV_NOT_CONFIG	Device not configured
0xA00F2041	MI_ERR_DISP_DEV_NOT_ENABLE	Device not enabled
0xA00F2042	MI_ERR_DISP_DEV_ALREADY_ENABLED	Device has been enabled already
0xA00F2043	MI_ERR_DISP_DEV_ALREADY_BOUND	Device has been bound already
0xA00F2044	MI_ERR_DISP_DEV_NOT_BIND	Device not bound
0xA00F2045	MI_ERR_DISP_LAYER_NOT_ENABLE	Video layer not enabled
0xA00F2046	MI_ERR_DISP_LAYER_NOT_DISABLE	Video layer not disabled
0xA00F2047	MI_ERR_DISP_LAYER_NOT_CONFIG	Video layer not configured
0xA00F2048	MI_ERR_DISP_INPUTPORT_NOT_DISABLE	Input port not disabled
0xA00F2049	MI_ERR_DISP_INPUTPORT _NOT_ENABLE	Input port not enabled
0xA00F204A	MI_ERR_DISP_INPUTPORT _NOT_CONFIG	Input port not configured
0xA00F204B	MI_ERR_DISP_INPUTPORT _NOT_ALLOC	Input port not allocated
0xA00F204C	MI_ERR_DISP_INVALID_PATTERN	Invalid pattern
0xA00F204D	MI_ERR_DISP_INVALID_POSITION	Invalid position
0xA00F204E	MI_ERR_DISP_WAIT_TIMEOUT	Wait timeout
0xA00F204F	MI_ERR_DISP_INVALID_VIDEO_FRAME	Invalid video frame
0xA00F2050	MI_ERR_DISP_INVALID_RECT_PARA	Invalid rectangle parameter
0xA00F2051	MI_ERR_DISP_ INPUTPORT_SHOW_AREA_OVERLAP	Input port area overlapped
0xA00F2052	MI_ERR_DISP_INVALID_LAYERID	Invalid video layer ID
0xA00F2053	MI_ERR_DISP_LAYER_ALREADY_BOUND	Video layer has been bound already
0xA00F2054	MI_ERR_DISP_LAYER_NOT_BIND	Video layer not bound

5. PROCFS INTRODUCTION¶

5.1. DISP cat¶

Debug info

# cat /proc/mi_modules/mi_disp/mi_disp0

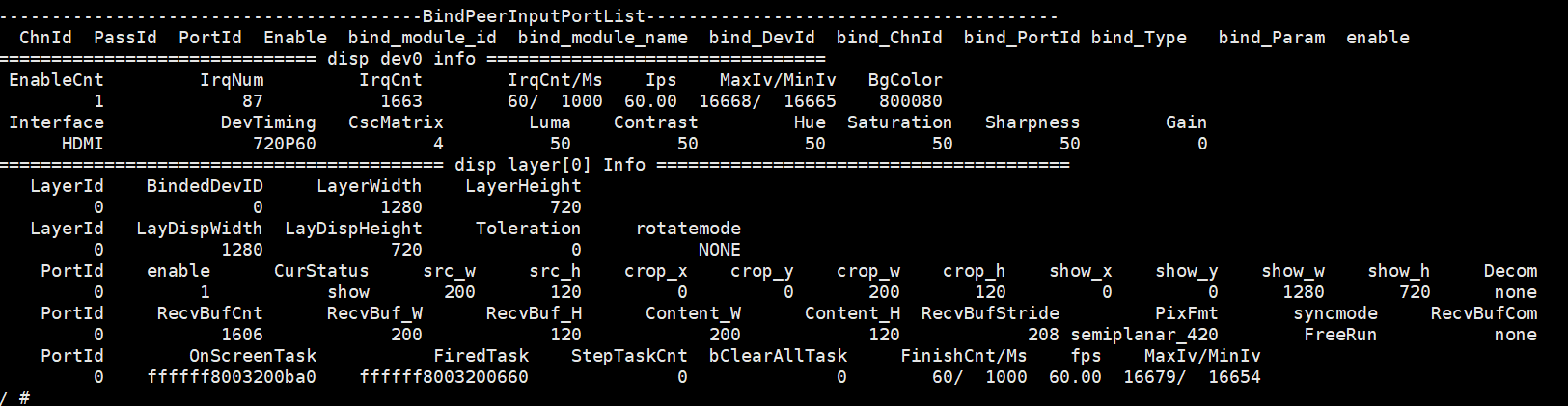

Debug info analysis

Record the current usage status of DISP, device attribute, layer attribute, and inputport attribute. This information can be obtained dynamically, which is convenient for debugging and testing.

Parameter Description

Parameter		Description
device info	EnableCnt	Dev Enable count
	IrqNum	Interrupt Number
	IrqCnt	Interrupt Count
	IrqCnt/Ms	Interrupt count within a certain period of time, unit: ms
	Ips	Interrupt count per second
	BgColor	Background Color (YUYV accounts for 8bit)
	Interface	Interface Type CVBS, YPBPR, VGA, BT656, BT1120, MCU, MCU_NOFLM, HDMI, LCD, BT656_H, BT656_L, TTL, MIPI_DSI, TTL_SPI, SRGB
	DevTiming	Output Timing range: [E_MI_DISP_OUTPUT_PAL ~ E_MI_DISP_OUTPUT_USER]
	CscMatrix	CSC Matrix selection range: [E_MI_DISP_CSC_MATRIX_BYPASS ~ E_MI_DISP_CSC_MATRIX_RGB_TO_BT709_PC]
device info	Luma	[0 ~ 99], default 50
	Contrast	[0 ~ 99], default 50
	Hue	[0 ~ 99], default 50
	Saturation	[0 ~ 99], default 50
	Sharpness	[0 ~ 255], default 0
	Gain	[0 ~ 255], default 0
layer info	LayerId	The value range depends on the chip specifications.
	BindedDevID	The value range depends on the chip specifications.
	LayerWidth	Layer Width
	LayerHeight	Layer Height
	LayDispWidth	Layer display width
	LayDispHeight	Layer display height
	Toleration	PTS error tolerance threshold, in milliseconds
	rotatemode	Parameter range: [E_MI_DISP_ROTATE_NONE~E_MI_DISP_ROTATE_270]
port info	PortId	The value range depends on the chip specifications.
	enable	0: Disable 1: Enable
	CurStatus	Port status, range: [invalid, pause, resume, step, refresh, show, hide]. The default is invalid.
	src_w	The width of original image
	src_h	The height of original image
	crop_x	The starting abscissa of crop area
	crop_y	The starting ordinate of crop area
	crop_w	The width of crop area
	crop_h	The height of crop area
	show_x	The starting abscissa of the port on the layer
	show_y	The starting ordinate of the port on the layer
	show_w	The width of the port display
	show_h	The height of the port display
	RecvBufCnt	The count of buffs currently received
	RecvBuf_W	The width of input image
	RecvBuf_H	The height of input image
	Content_W	The valid width of input image
	Content_H	The valid height of input image
	RecvBufStride	Stride of input image
	PixFmt	Pixel format of input image
	syncmode	Check PTS/Free Run Parameter range: [Invalid, CheckPts, FreeRun]
	RecvBufCom	Video compression format
	OnScreenTask	The Task currently being displayed, if it is NULL, it may be that no buff was sent to disp, or disp was not interrupted, or the cmdq of disp did not take effect.
	FiredTask	Task to be displayed
	StepTaskCnt	Task count to be processed step by step
	bClearAllTask	Whether to clear all Task 0: not clear 1: clear all Task
	FinishCnt/Ms	Tasks count finished in a certain period of time, unit: ms.
	fps	Frame rate
	MaxIv/MinIv	The maximum and minimum intervals for completing a task within a certain period of time, unit: ms.

5.2. DISP echo¶

Function	Get the echo command supported by the current DISP and its specific usage form.
Command	echo help > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	None
Example	echo help > /proc/mi_modules/mi_disp/mi_disp0

Function	Get current screen data (reserved, currently not supported).
Command	echo getcapframe [devid] [layerid] [path] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[devid] Device id [layerid] Video layer id [path] Path and file name
Example	echo getcapframe 0 0 /mnt/frame.yuv > /proc/mi_modules/mi_disp/mi_disp0

Function	Open/Close pts check of each port.
Command	echo checkframepts [layerid] [protid] [ON/OFF] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[layerid] Video layer id [portid] port id [ON/OFF] ON: open, OFF: close
Example	echo checkframepts 0 0 ON > /proc/mi_modules/mi_disp/mi_disp0

Function	dump frame data
Command	echo dumpframe [layerid] [portid] [path] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[layerid] Video layer id [portid] port id [path] Storage path of dumped data
Example	echo dumpframe 0 0 /mnt/ > /proc/mi_modules/mi_disp/mi_disp0

Function	Stop single port of disp to get buff
Command	echo stopgetbuff [layerid] [portid] [ON/OFF] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[layerid] Video layer id [portid] port id [ON/OFF] ON:stop OFF:resume
Example	echo stopgetbuff 0 0 ON > /proc/mi_modules/mi_disp/mi_disp0

Function	Set background color
Command	echo bgcolor [devid] [value] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[devid] Device id [value] Color value
Example	echo setbgcolor 0 255 > /proc/mi_modules/mi_disp/mi_disp0

Function	Dynamically set screen effects
Command	echo csc [devid] [CscMatrix] [Contrast] [Hue] [Luma] [Saturation] [Sharpness] [Gain] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[devid] Device id [CscMatrix] Color matrix [Contrast] Contrast [Hue] Hue [Luma] Luma >[Saturation] Saturation [Sharpness] Sharpness [Gain] Gain
Example	echo csc 0 0 50 50 50 50 0 0 > /proc/mi_modules/mi_disp/mi_disp0

Function	Debug color temperature
Command	echo colortemp [devid] [BlueOffset] [GreenOffset] [RedOffset] [BlueColor] [GreenColor] [RedColor] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[devid] Device id [Blue/Green/Redoffset] Not used [RedColor] R Portion (0-255) [GreenColor] G Portion (0-255) [BlueColor] B Portion (0-255)
Example	echo setcolortemp 0 50 50 50 50 50 50 > /proc/mi_modules/mi_disp/mi_disp0

Function	Rotate the layer
Command	echo rotate [layerid] [0/ 1/ 2]> /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[layerid] Video layer id [0/ 1/ 2] rotate configuration 0：E_MI_DISP_ROTATE_NONE, not rotate 1：E_MI_DISP_ROTATE_90, rotate 90° 2：E_MI_DISP_ROTATE_270, rotate 270°
Example	echo rotate 1 1 > /proc/mi_modules/mi_disp/mi_disp0

Function	Crop the original data of a port
Command	echo crop [layerid] [portid] [x] [y] [width] [height]> /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[layerid] Video layer id [portid] port id [x] The starting abscissa of crop area [y] The starting ordinate of crop area [width] The width of crop area [height] The height of crop area
Example	echo crop 0 0 0 0 100 100 > /proc/mi_modules/mi_disp/mi_disp0

Function	Hide a port
Command	echo hide [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[layerid] Video layer id [portid] port id
Example	echo hide 0 0 > /proc/mi_modules/mi_disp/mi_disp0

Function	Show a port
Command	echo show [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[layerid] Video layer id [portid] port id
Example	echo show 0 0 > /proc/mi_modules/mi_disp/mi_disp0

Function	Stop getting data for a port
Command	echo pause [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[layerid] Video layer id [portid] port id
Example	echo pause 0 0 > /proc/mi_modules/mi_disp/mi_disp0

Function	Resume getting data for a port
Command	echo resume [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[layerid] Video layer id [portid] port id
Example	echo resume 0 0 > /proc/mi_modules/mi_disp/mi_disp0

Function	Control a port to stop getting data after acquiring a frame of data
Command	echo step [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[layerid] Video layer id [portid] port id
Example	echo step 0 0 > /proc/mi_modules/mi_disp/mi_disp0

Function	Clear data of a port
Command	echo clear [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
Parameter Description	[layerid] Video layer id [portid] port id
Example	echo clear 0 0 > /proc/mi_modules/mi_disp/mi_disp0

5.3. WBC cat¶

Debug info
```
# cat proc/mi_modules/mi_disp/mi_wbc0
```
Debug info analysis

Record the current use status and data attributes of WBC, and these information can be obtained dynamically to facilitate debugging and testing.

Parameter Description

Parameter		Description
device info	irqnum	Interrupt Number
	Isrcnt	Interrupt Count
	irq enable	Interrupt Status 0: disable 1: enable
	src dev	src device id
	srcw	The width of data source
	srch	The height of data source
	src type	Data source type 0: video+ui 1: video
	targetW	The width of data output
	targetH	The height of data output
	OnScreenTask	Task being output
	FiredTask	Task to be output

5.4. WBC echo¶

Function	Get the echo command supported by the current WBC and its specific usage form
Command	echo help > /proc/mi_modules/mi_disp/mi_wbc0
Parameter Description	None
Example	echo help > /proc/mi_modules/mi_disp/mi_wbc0

Function	Dump frame data
Command	echo dumpframe [path] > /proc/mi_modules/mi_disp/mi_wbc0
Parameter Description	[path] Storage path of dumped data
Example	echo dumpframe /mnt/ > /proc/mi_modules/mi_disp/mi_wbc0

Parameter Name	Description	Input/Output
DispDev	Output device number	Input
pstPubAttr	Pointer to output device public attribute structure	Input

Parameter Name	Description	Input/Output
DispDev	Video output device number	Input
pstVgaParam	Pointer to VGA image output effect structure	Output

Parameter Name	Description	Input/Output
DispWbc	Write back the device number.	Input
pstWbcSource	Write back the source structure pointer.	Input

Member	Description
stCsc	Color space conversion information definition
u32Gain	Signal strength gain
u32Sharpness	Sharpness definition

Member	Description
stCsc	Color conversion information definition
u32Sharpness	Sharpness definition

Member	Description
u16RedColor	Red component definition
u16GreenColor	Green component definition
u16BlueColor	Blue component definition

Member	Description
stDispWin	Input port display position
stLayerSize	Video layer size
ePixFormat	Input pixel data format

Member	Description
u16X	X-axis start point
u16Y	Y-axis start point
u16Width	X-axis width
u16Height	Y-axis height

Member	Description
E_MI_DISP_SYNC_MODE_INVALID	Invalid sync mode
E_MI_DISP_SYNC_MODE_CHECK_PTS	Check the PTS sync mode
E_MI_DISP_SYNC_MODE_FREE_RUN	Bypass the PTS sync mode

Member	Description
bEnable	Input port enable status
eStatus	Input port status type

Member	Description
MI_DISP_WBC_SOURCE_DEV	The write back source is device (video + UI)
MI_DISP_WBC_SOURCE_VIDEO	The write back source is video layer (video only)

Member	Description
eSourceType	Write back source type
u32SourceId	Write back source device ID

Member	Description
u32Width	Width of write-back target
u32Height	Height of write-back target

Member	Description
stTargetSize	Write-back target size
ePixFormat	Pixel format of write-back image
eCompressMode	Compress mode
